Every Detail

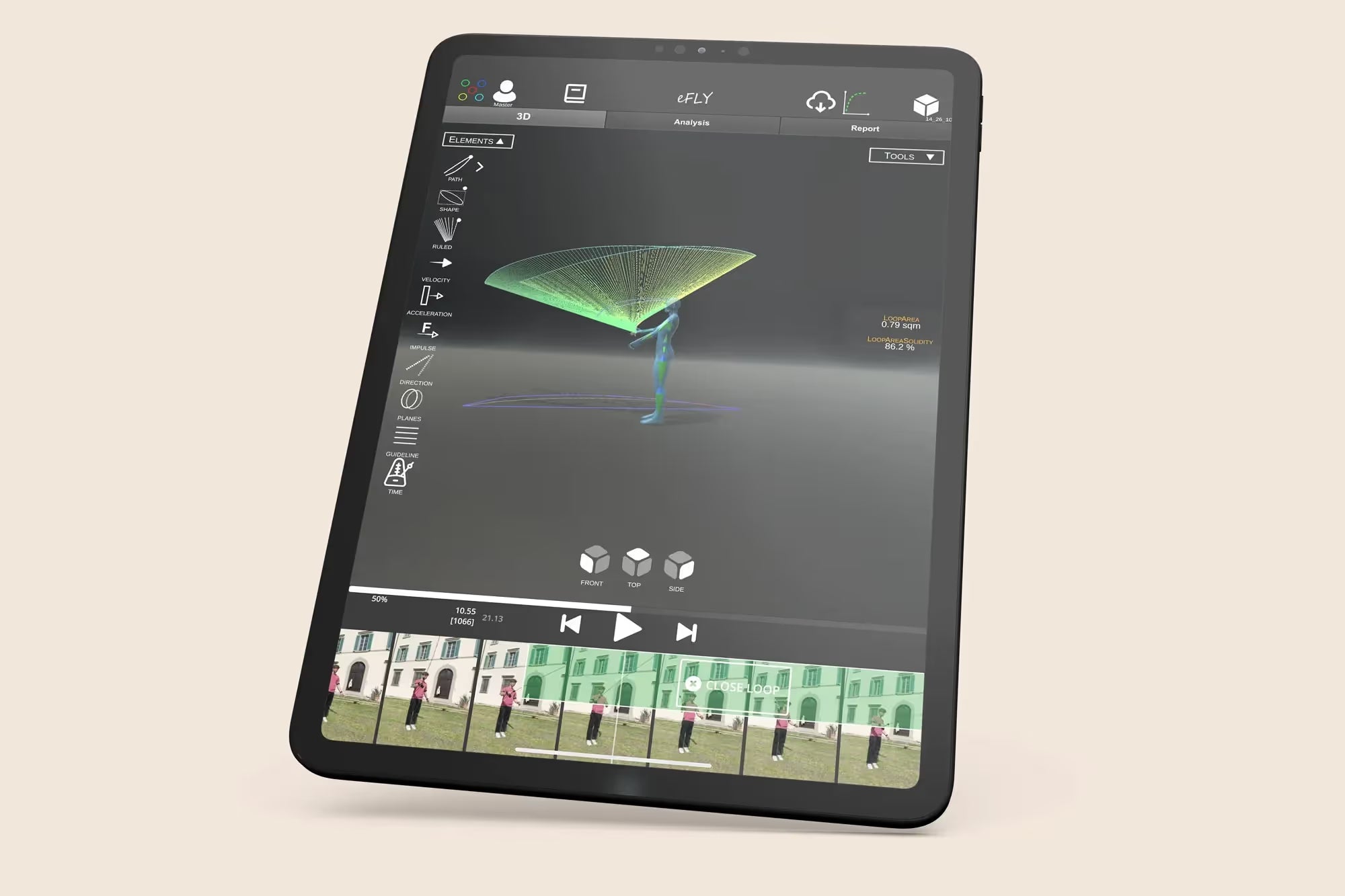

The device manages the 5 sensors and captures the data together with the video at 30 hertz. Each frame is associated with a complete dataset of accelerations, speeds and positions in 3d of the 5 sensors. Simultaneous analysis of video and inertial data allows you to make great interesting considerations in casting.
Sensors

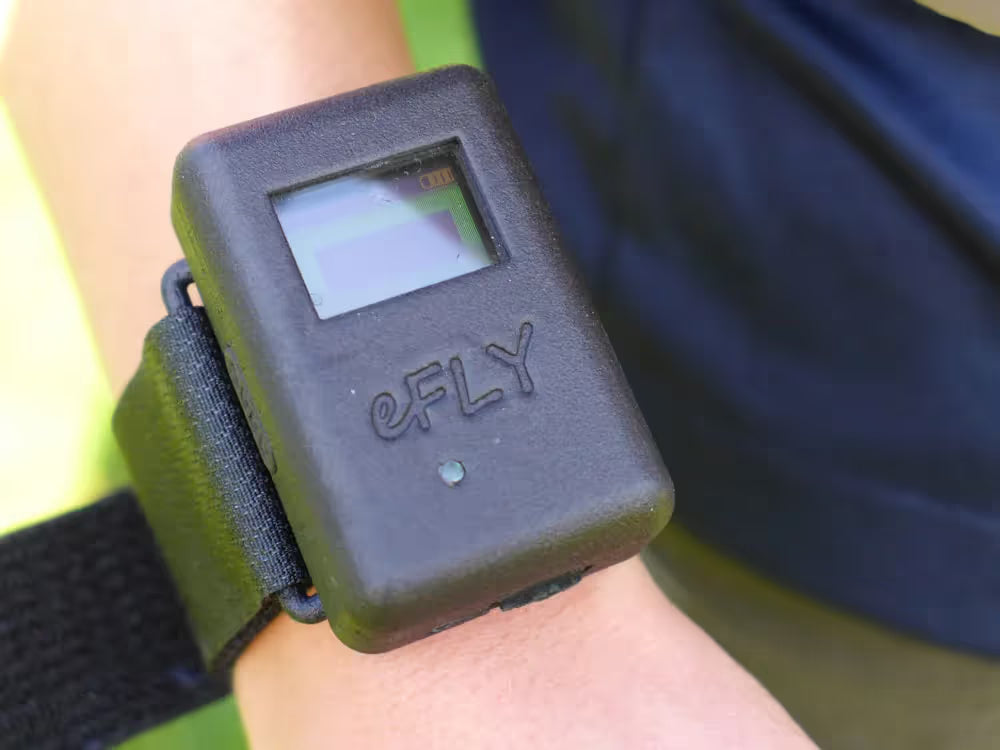

Designed to work on both iPad an iPhone the eFly system utilises 5 sensors to give the most accurate data. 1 sensor on the left arm and 1 on left wrist 1 sensor on the right arm and 1 on right wrist 1 sensor on the rod. This in turns leads to a description of angler’s action contributing to improve performance and precision in fishing activities.

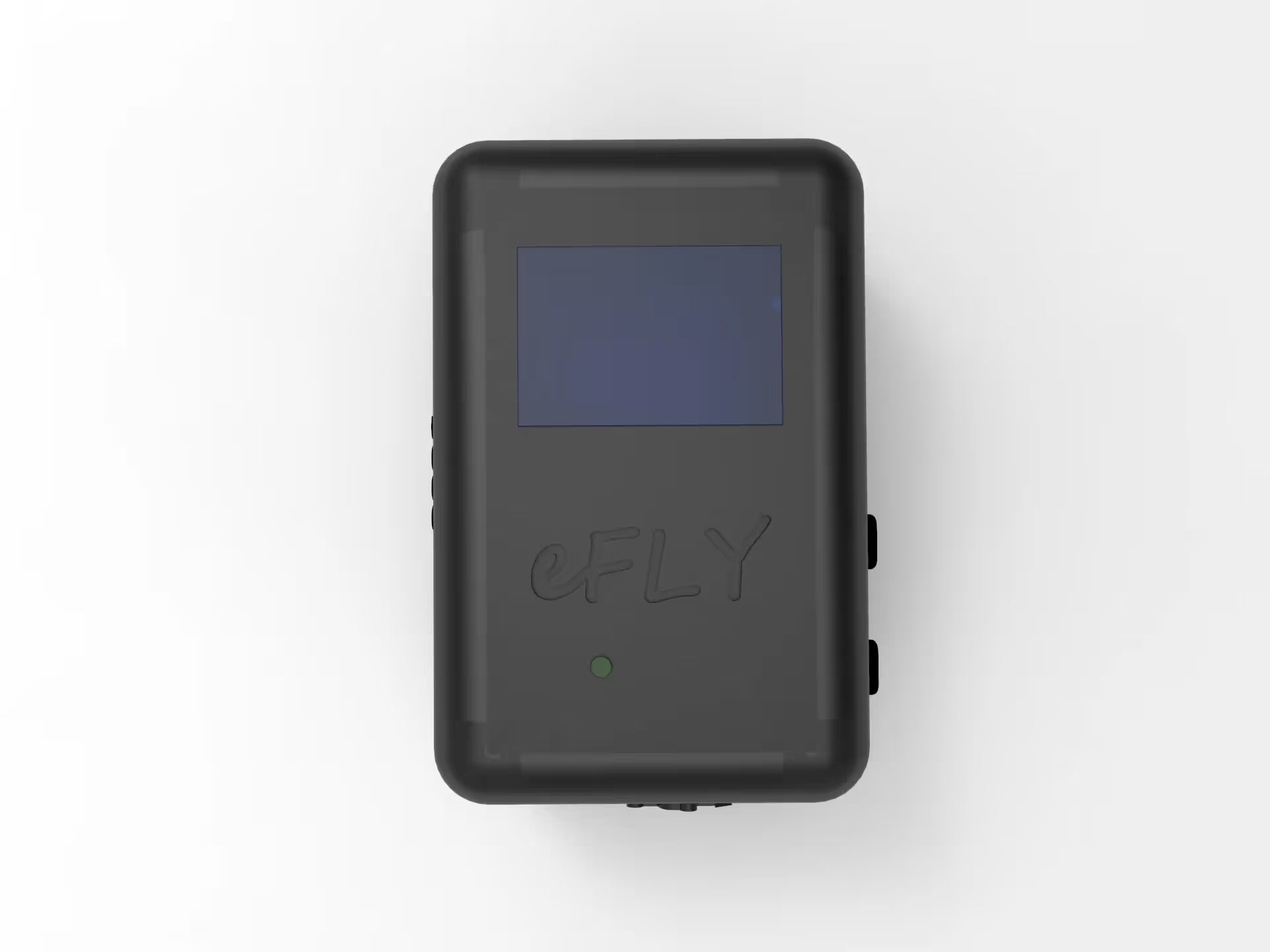

Tech Specs
Accuracy
Accurate output data: 3-axis XYZ (Pitch Roll Yaw) Acceleration + Gyro + Angle+ Magnetic field
Weight
48 grams
Dimensions
38.0 x 59.0 x 24.0 mm
Fixings

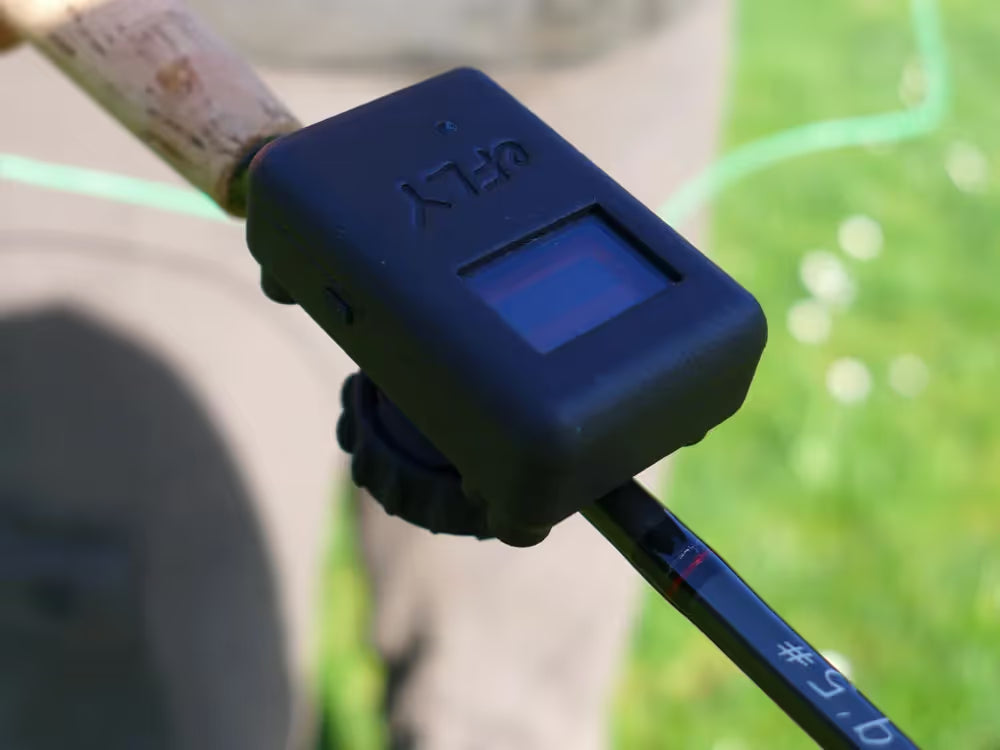

Rod - Quick action screw fixing

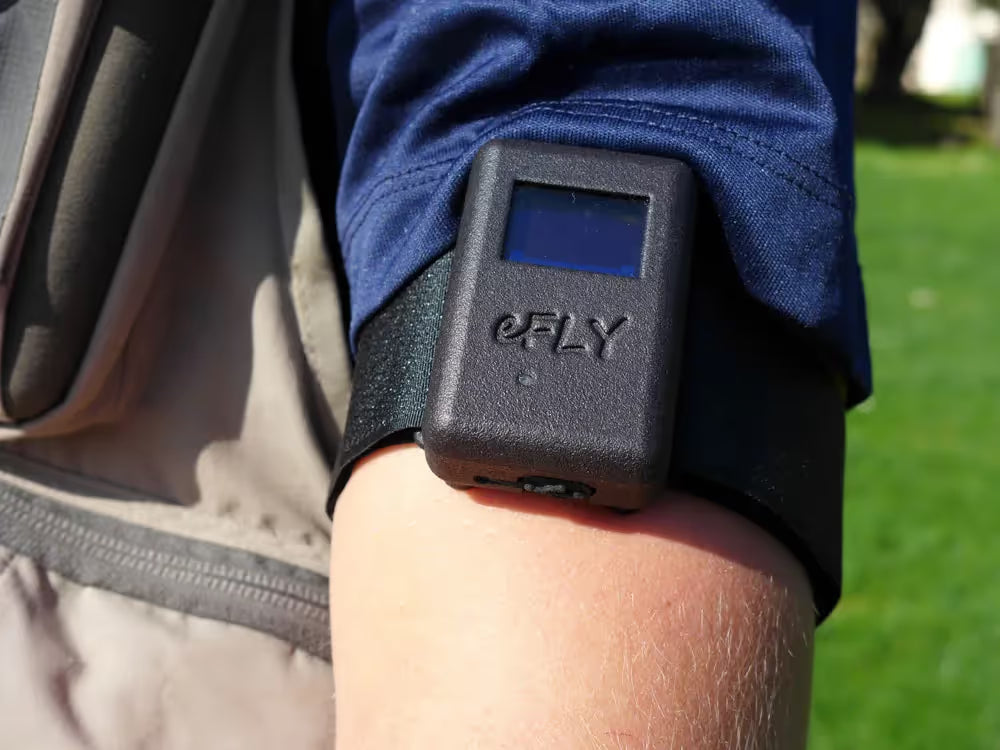

Arm - Strap
Connectivity
BLE (Bluetooth low energy)
Bluetooth coverage range: within 50 meters (without obstacles like walls)
Battery
90 Minute battery life
Colour
Sensor - Black
Arm Band - Black
Features
Single loop analysis
Possibility to compare different loops Template creation for comparison
Loop database with notes
Filter of loops per date, per angler , per notes
Full loop analysis: Tip-Butt-Elbow-Shoulder-Haul
Upload to cloud
Report customisable
Angler profile
Rod profile for deformation measurement
Angles
Positions
Paths
Ruled surface
Twist
Shape

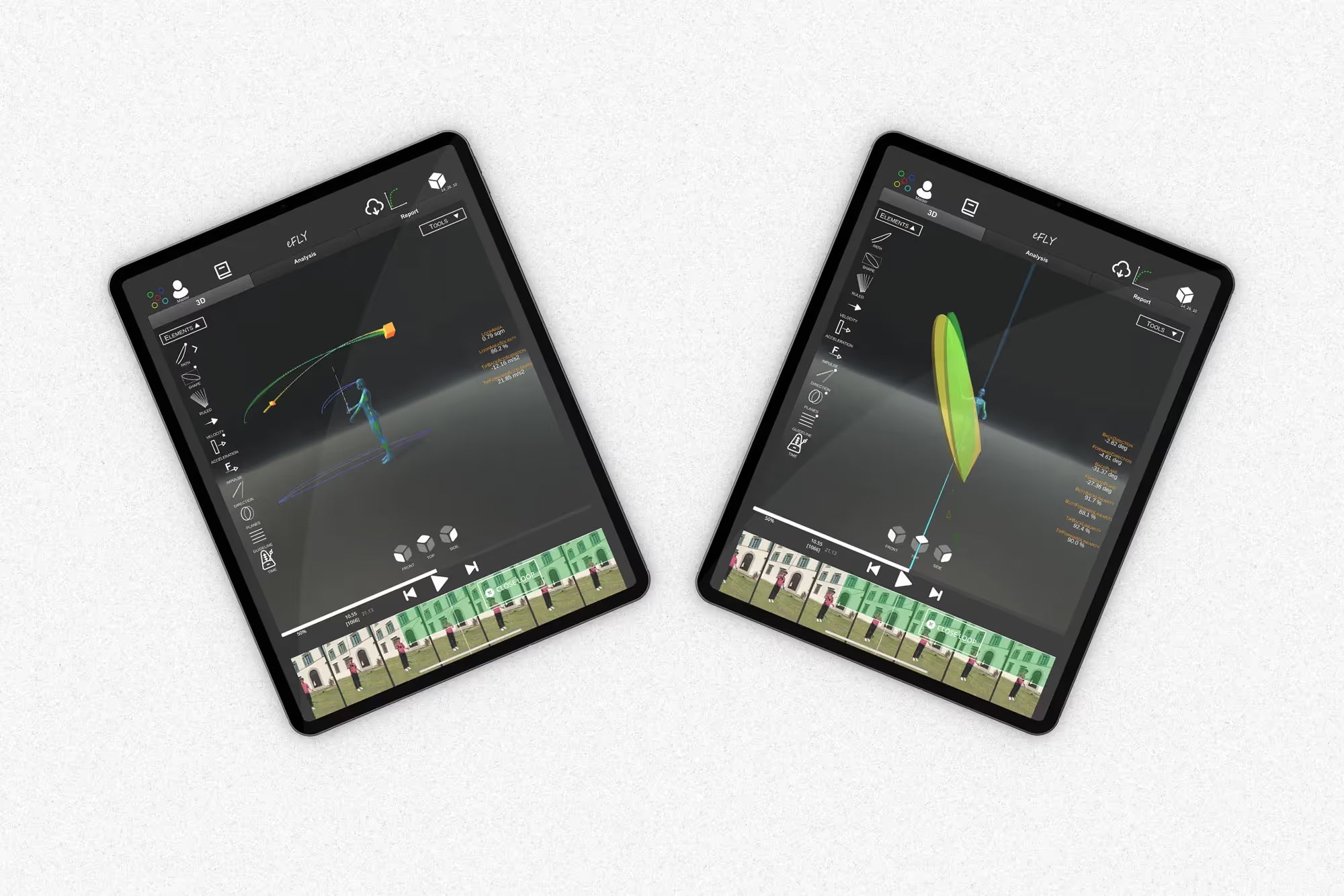

Planes
Solidity
Directions : Front – Side – Height
Speed
Acceleration
Time
Tempo ratio
Compare template
Loop surface
Loop area

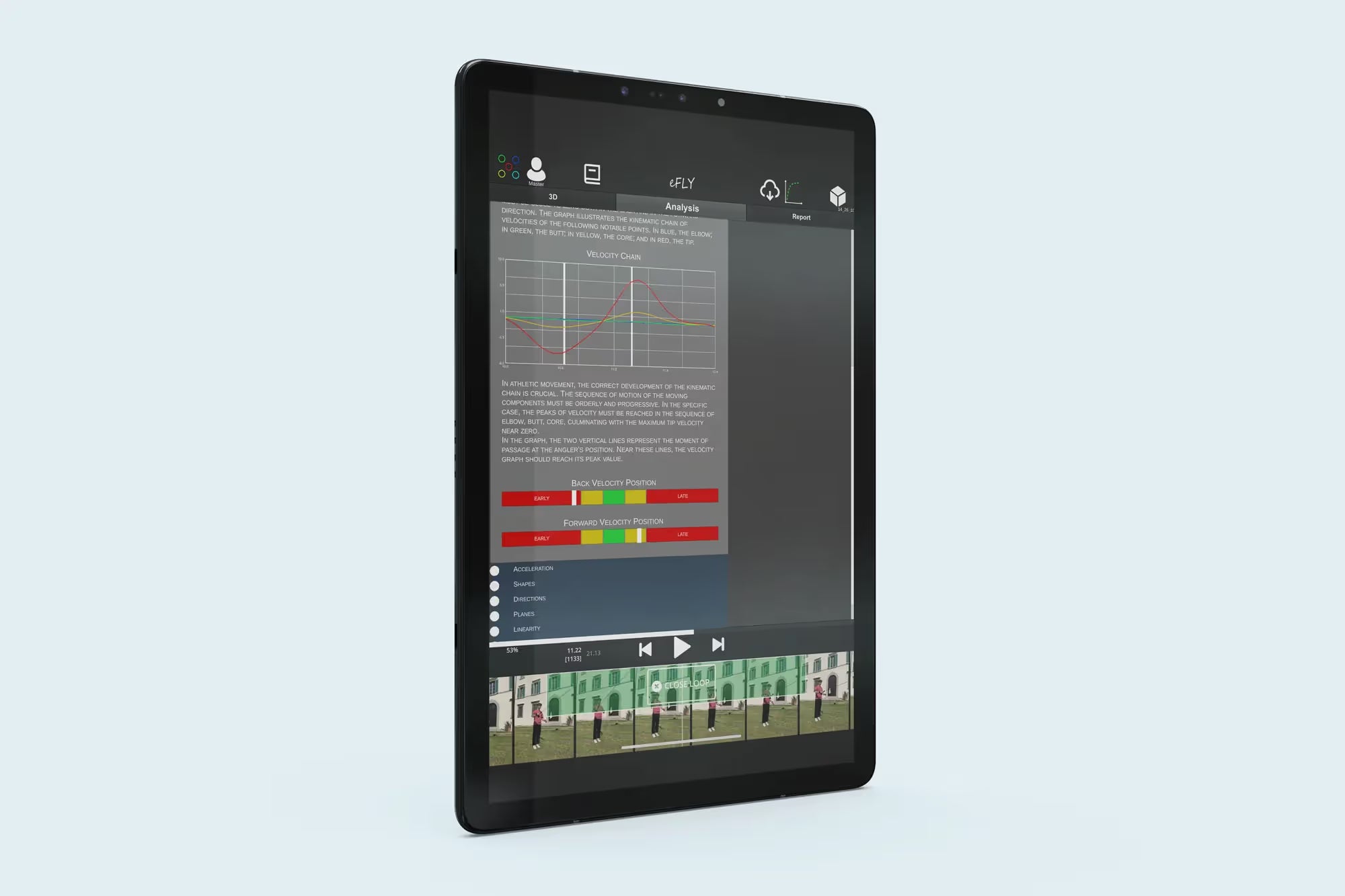

Graph for detailed frame by frame cast analysis
